Right corner fireplace insert ALBERO AL9R.HD

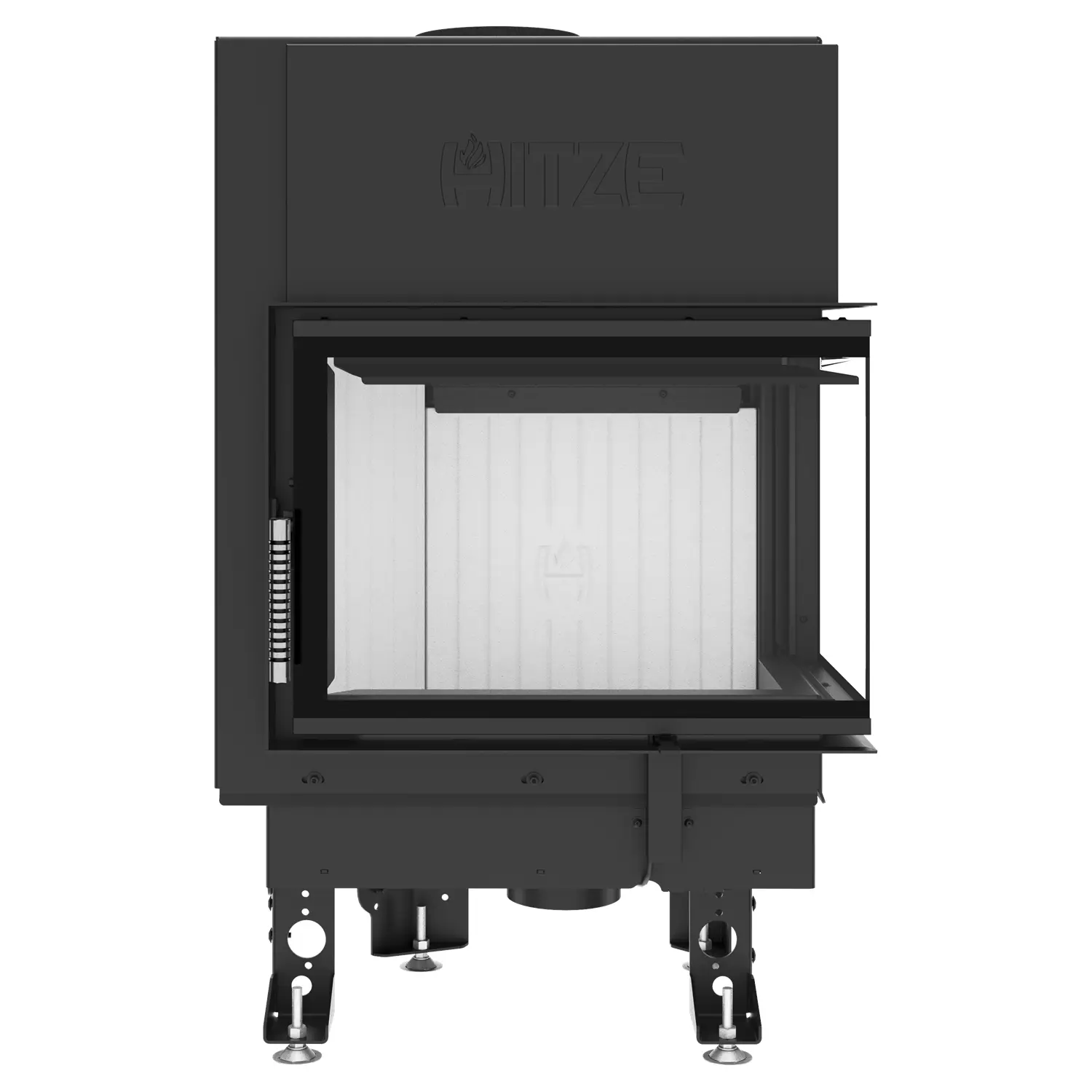

Right corner fireplace insert ALBERO AL9R.HD This model has a nominal power of 9 kW and is equipped with front glass and a right-hand side window. This design provides a wide view of the fire and allows you to observe the flames from different parts of the room.

A heating load range of 4.5 to 12 kW allows you to adjust the device's operating intensity to your current heating needs. Furthermore, the insert's corner design works well in modern living rooms and open-plan living areas.

The model is one of the popular ones ALBERO fireplace insert seriesIt combines the design characteristic of this line, the ability to personalize its appearance, and solutions that support efficient wood burning.

Front glazing and right side window

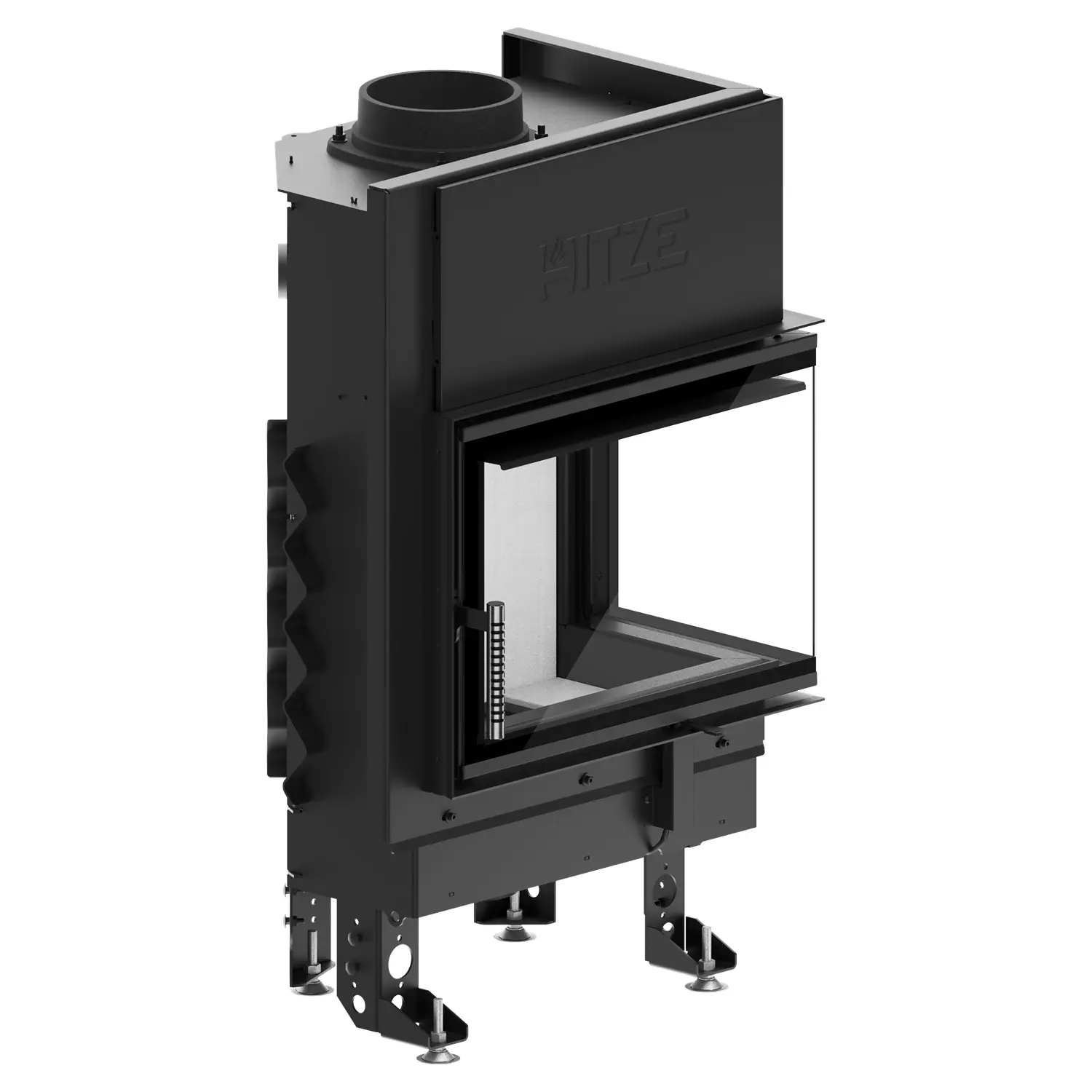

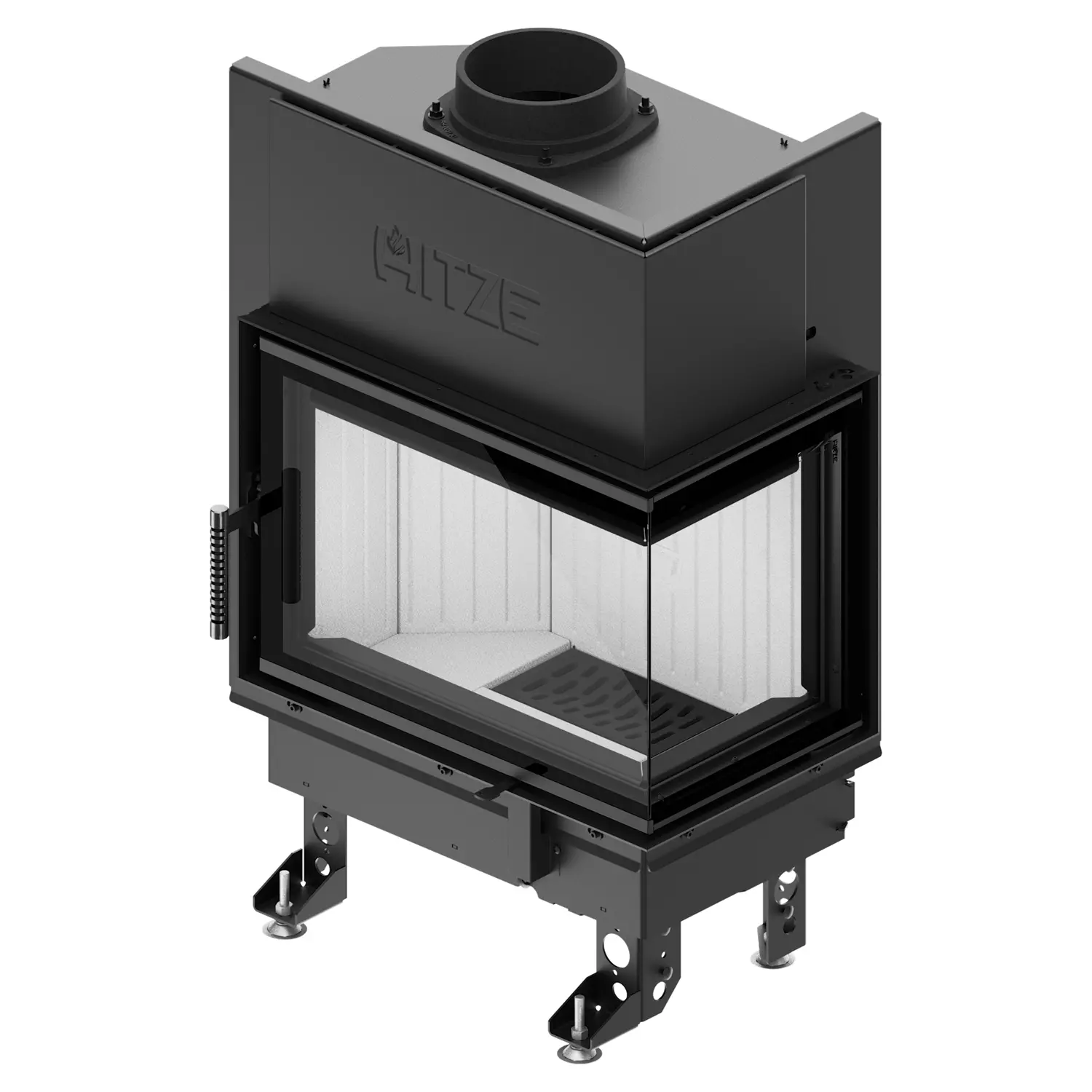

The most important feature of the AL9R.HD model is corner glazing with side glass on the right sideThis allows the fire to be visible both from the front and from the right side of the room.

This solution makes it easy to fit the insert into a structure placed against a wall, in a corner of a room, or at the border of two functional zones. At the same time, the panoramic view of the flames allows the fireplace to become a central element of the interior design.

The manufacturer's glazing dimensions are 545 × 325 × 390 mm. However, before installing the unit, please refer to the current technical drawing.

Ceramic glass resistant to 800°C

The insert door is equipped with heat-resistant ceramic glass suitable for operation at temperatures up to 800°CThe material allows for safe observation of the fire and retains its properties during proper operation of the device.

Furthermore, the glazing supports an air curtain system. Air directed along the inner surface of the glass helps reduce soot buildup. As a result, the view of the fireplace can remain clear for longer.

However, a clean glass system does not eliminate the need for periodic cleaning. The transparency of the glazing is also influenced by wood moisture content, fuel quality, chimney draft, and how the fireplace is used.

Thermal efficiency and controlled combustion

The thermal efficiency of the ALBERO AL9R.HD insert is 78%A properly designed aeration system supports stable combustion and efficient use of the energy contained in the wood.

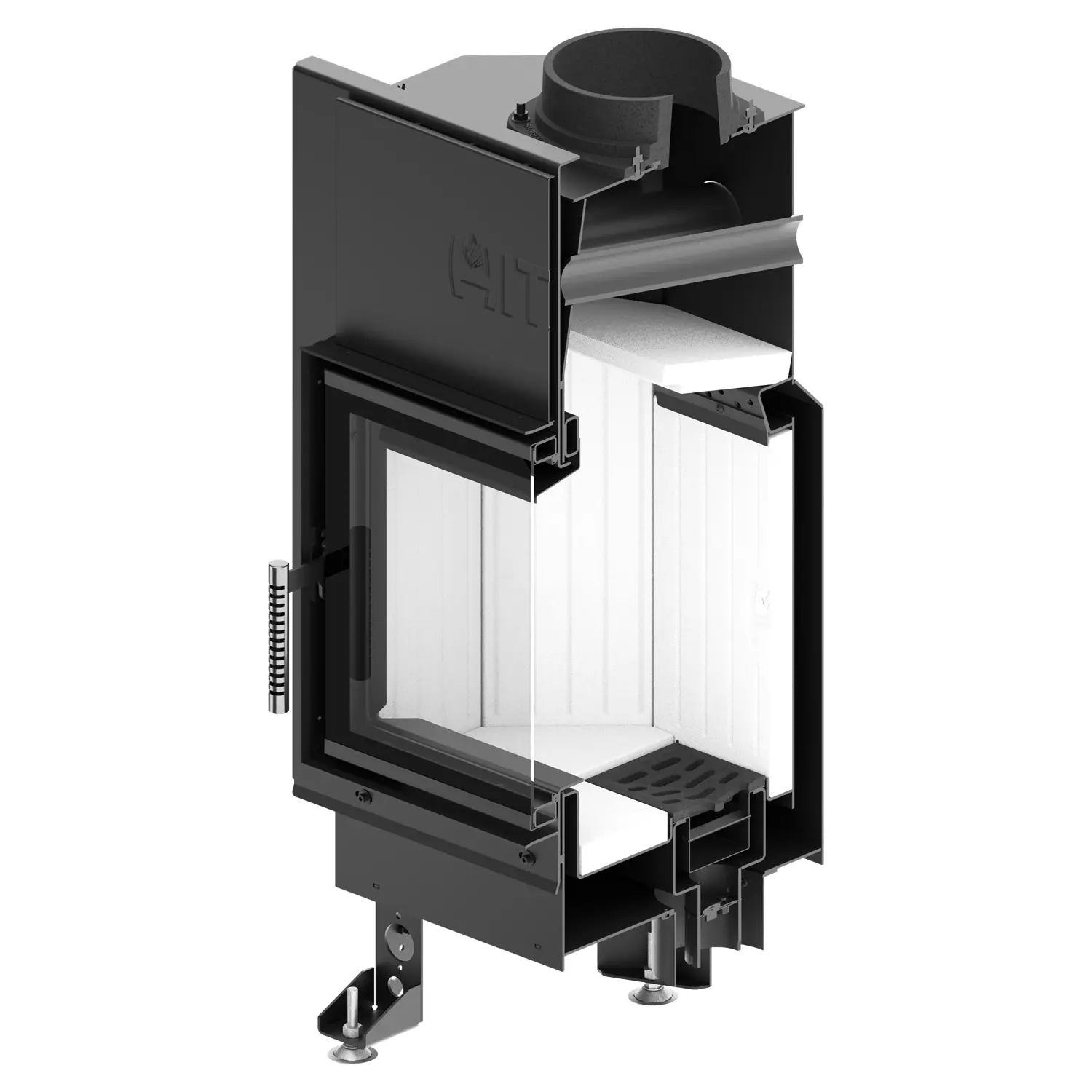

Secondary air is supplied to the upper part of the combustion chamber. This helps to burn off the gases produced by fuel combustion. This allows more of the energy to be used for heating the room.

Pollen emissions at 13% O₂ is 36 mg/m³, while CO emissions at 13% O₂ is 818 mg/m³. Obtaining the declared parameters requires the use of appropriately dry wood and operation of the device in accordance with the instructions.

External air intake and recuperation

The base of the insert is equipped with external air intake damperThis allows the air needed for combustion to be supplied directly from outside the building, instead of being drawn solely from the room being heated.

This solution allows the AL9R.HD fireplace insert to be used in modern, airtight buildings equipped with mechanical ventilation. This makes the device suitable for homes with heat recovery systems.

The intake port diameter is 125 mm. The exhaust pipe diameter is 180 mm.

Possibility of creating a warm building

The ALBERO AL9R.HD model allows you to make warm fireplace installationProperly selected storage materials can absorb some of the heat energy and then gradually release it into the room.

The design should take into account the required active area of the ventilation grilles. For this model, the active area of the outlet grilles is between 630 and 720 cm², while the active area of the inlet grilles should be between 360 and 590 cm².

The type of materials, hole layout, and installation method should be consulted with a qualified installer. This will ensure proper airflow and safe operation of the device.

Body made of P265GH boiler steel

The insert casing is made of P265GH boiler steel grade compliant with EN 10028-2This material is intended for applications requiring resistance to elevated temperatures.

The steel door, made of a special profile, ensures adequate structural rigidity. Furthermore, the robust body ensures stable operation of the device during regular use.

Personalization of the ALBERO fireplace insert

The ALBERO series allows you to match selected insert elements to the character of your interior. Customization options include a handle, grilles, and a fireplace insert made of black heat-retaining concrete.

The optional black handle allows for a more uniform appearance of the door. The dark combustion chamber lining creates a cohesive composition with the insert frame and highlights the color of the flames.

Thanks to this, the right-sided fireplace insert can be matched to the color scheme of the building, furniture and other elements of the living room equipment.

Dimensions and weight of the AL9R.HD insert

The dimensions of the device are 636 × 1009 × 443 mmThe corner structure requires that both the front and right side of the glazing be included in the design.

The insert weighs 112 kg. Therefore, the substrate should have adequate load-bearing capacity and be prepared in accordance with the requirements for the installation of solid fuel heating devices.

Before starting the installation, you should also take into account the space needed to connect the flue pipe, provide an air intake and maintain the required distances from flammable elements.

Compliance with Ecodesign and BImSchV II

The ALBERO AL9R.HD right corner fireplace insert meets the requirements Ecodesign and BImSchV IIThe device has an energy efficiency class of A.

The requirements for local solid fuel space heaters are specified, among others, by: Commission Regulation (EU) 2015/1185.

In accordance with Ecodesign requirements, this product cannot be used as a primary heating source. Therefore, it should be used as a supplementary heat source, in accordance with its intended use and the device's instructions.

Why choose ALBERO AL9R.HD?

Right corner fireplace insert ALBERO AL9R.HD It combines a nominal power of 9 kW, a wide view of the fire, and the ability to observe the flames from the front and right side. It is also adapted to external air intake and homes with heat recovery.

The option of customizing the warm interior and personalizing the handle, grilles, and fireplace insert makes it easy to tailor the device to a specific project. As a result, the AL9R.HD model can serve as an additional heat source and an attractive interior design element.
