ALBERO AL9C.HD BOX

FIREPLACE INSERT

Energy class:
  • Modern BOX housing (black or white).
  • Suitable for recuperation.
  • Standard steel door handle.
  • Ceramic glass withstands up to 800°C.
  • Construction made of P265GH boiler steel.
  • Air curtain keeping the glass clean.
  • Afterburning of exhaust gases for greater efficiency.
  • Anti-corrosion paint coating.

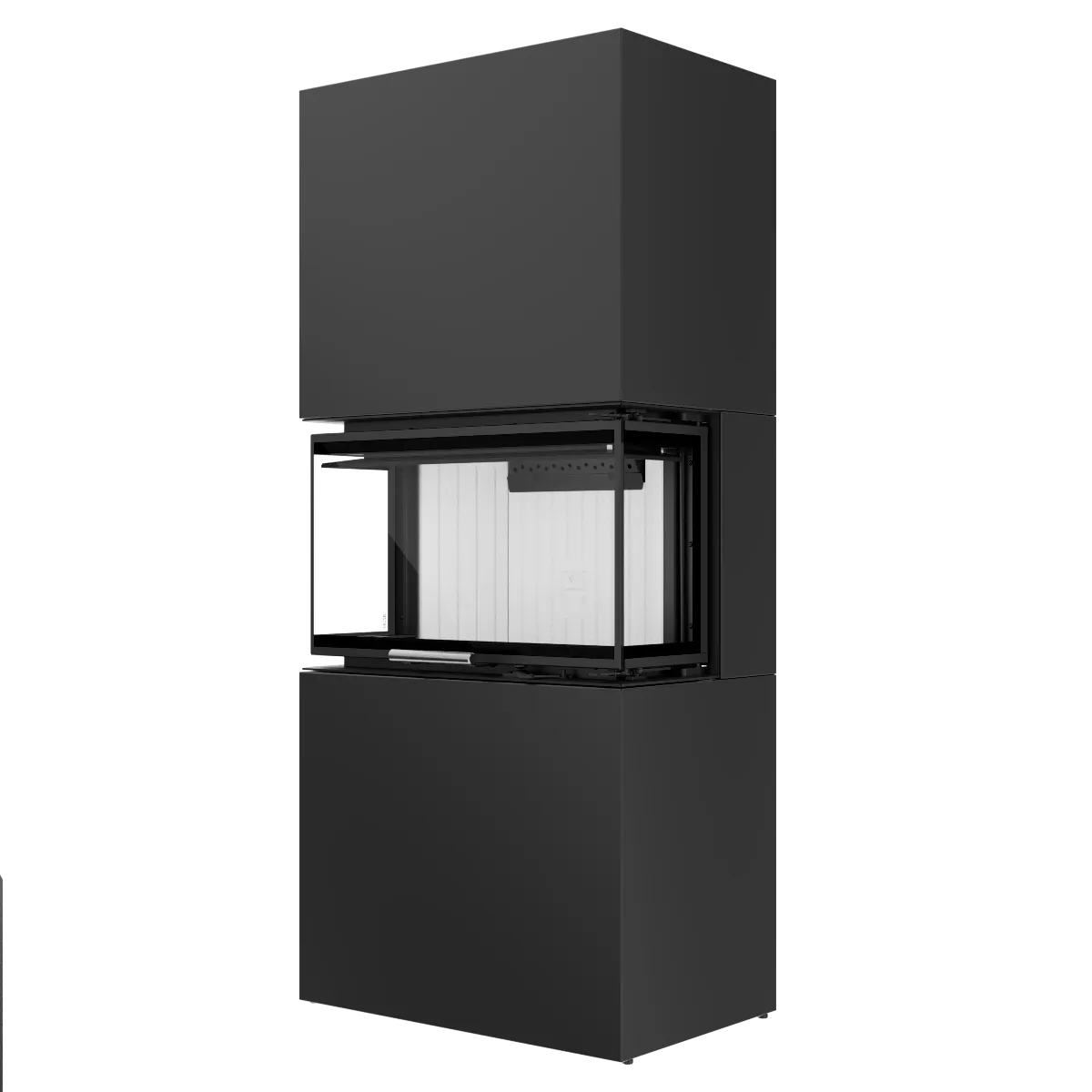

ALBERO 9 three-sided fireplace with BOX casing

Three-sided fireplace ALBERO AL9C.HD it's modern triple-glazed fireplace insert, which provides a panoramic view of the fire from three sides. The glass front and side windows make the flames visible from different parts of the room, thanks to which fireplace for the living room becomes the central element of interior design.

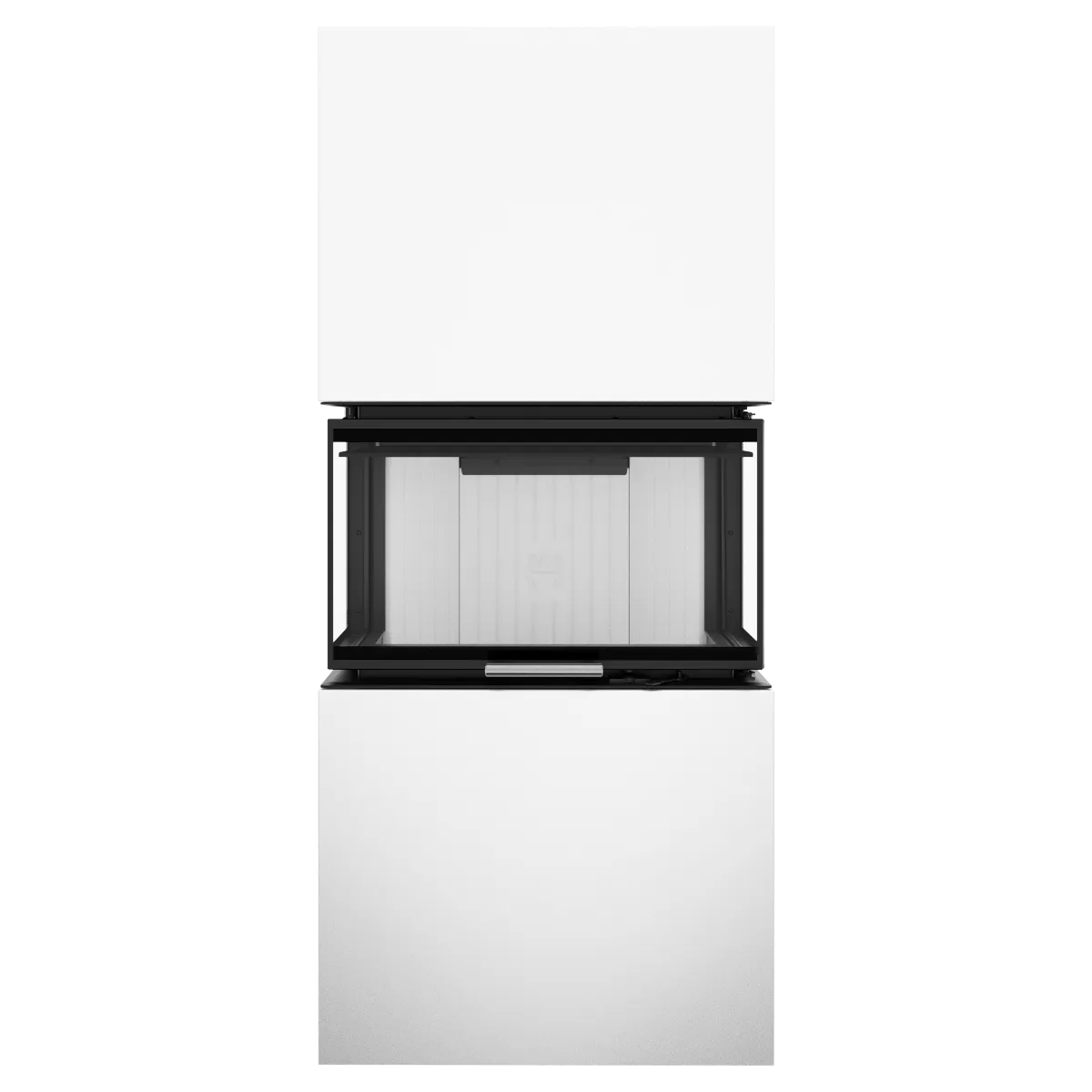

The ALBERO 9 model is available in a version with BOX housing – minimalist black construction that highlights the modern character of the fireplace. For greater design flexibility, a fireplace with BOX casing in white, perfect for bright and modern interiors.


Triple-glazed fireplace insert – personalization and modern technologies

ALBERO AL9C.HD triple-glazed fireplace insert offers a wide range of customization options. Various handle and cover options are available, as well as interior fireplace finishing options. black storage concrete, which improves combustion stability and heat accumulation.

The construction of the insert is made using modern production technologies, such as 2D and 3D laser cutting and precise sheet metal bending on CNC presses. MAG welding performed on a welding robot guarantees repeatability, tightness, and high quality.


Fireplace for the living room – functionality and high efficiency

ALBERO AL9C.HD living room fireplace was designed with modern construction in mind. FIREPLACE INSERT It is adapted to work with heat recovery, which enables its safe use in airtight, energy-efficient houses.

The fireplace mantle is made of P265GH boiler steel, compliant with the EN 10028-2 standard, which ensures high temperature resistance and long-term durability. ceramic glass up to 800°C guarantees safety and reliability of use.


Modern wood-burning fireplace – ecology and clean combustion

Modern wood-burning fireplace ALBERO AL9C.HD is equipped with systems that improve combustion efficiency and reduce emissions. Air curtain protects windows from dirt, and exhaust gas afterburning system increases the efficiency of the device and improves its ecological parameters.

Three-sided fireplace ALBERO 9 meets the requirements of the standards Ecodesign, BlmSchV II and 15a B-VG, which confirms its high efficiency and low emissions.

The slim frame of the fireplace door increases the glazing area, ensuring the maximum visual effect of the fire while maintaining high tightness and stability of the structure.

Fuel type
Seasoned hardwood with a moisture content of 12–20%
Nominal power (kW) 9
Heating load range [kW] 4.5–12
Thermal power transferred to the room (kW) 9
Thermal efficiency [%] 78
Pollen emissions at 13% O2 (mg/m³) 36
CO emission (at 13% O2 (mg/m³) 818
Energy class: A
Energy efficiency index EEI 103,1
Meets the requirements of EKOPROJEKT YES
Meets the requirements of BImSchV II YES
Designed for recuperation YES
Fabrication material P265GH boiler steel according to EN 10028-2
Weight (kg) 105
Type of hearth grates
Glass measurements 673 × 373 × 241
Flue diameter [mm] 177
Inlet diameter [mm] 123

Technical card
Product card
EkoDesign declaration
The declaration of performance
